Specifications
Our best selling porch railing system. Price includes all four pieces. Made of premium clear Western Cedar.
Use with 2 1/2″ and 3 1/2″ spindles and balusters. Also can be used with Sawn Balusters.
Sloped Bottom Rail provides better water drainage which helps prevent rot and is recommended for exterior applications. If ordering sloped bottom rail, remember to specify notched spindles/balusters.
This 4-piece porch railing system adds 10″ of total height, including a 3″ toe space: to get the right spindle length, take your desired top rail height minus 10″. Example: For a 36″ top rail height, use 26″ spindles.

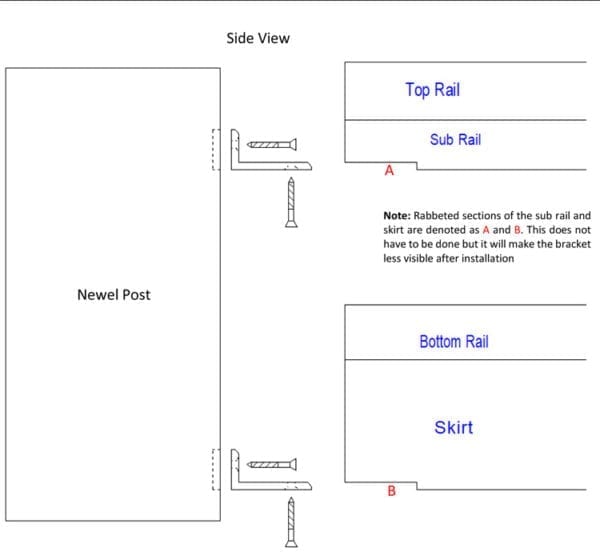

Designed to allow installer to completely hide all fasteners. Optional Rail Installation Hardware includes necessary brackets, screws, and bits to attach your rails to posts, columns, or walls. The heart of the install kit is the aluminum angle brackets which fit neatly and discretely under the Subrail and Bottom Rail or Skirt. Makes installation of our Porch Rail Systems a breeze while saving you trips to the hardware store. Order one Kit for every section of rail. This System has been tested and exceeds the load requirements for guard rail when used with our 4″ and 6″ class Porch Rail Systems. Stair rail kit brackets are custom made in our shop to your exact stair angle. YOU MUST SPECIFY THE RISE/RUN OF YOUR STAIRS when ordering a stair rail kit. For hollow columns such as our FRP columns, you may also need to use toggle bolts (not included).
A note on longer lengths: Lengths 8′ and over cost more per linear foot because of the additional material, manufacturing, and shipping costs. We recommend ordering the shortest lengths possible for your project. For example, if you have two 5′ lengths, place them in your shopping cart individually instead of doing one 10′ length. This keeps your product and shipping costs down. Note that longer lengths may be made from spliced wood (don’t worry, the joint is the strong point).
Lengths over 11′ feet available upon special request, for an additional charge. Call for details.
Concerned about stair balusters and sloped bottom rail? Read this article: How To Cut Stair Balusters for Sloped Bottom Rail
For CURRENT LEAD TIME and shipping transit time, click here.
| Rail System Specific Dimensions | ||||
|---|---|---|---|---|
| 6" Porch Rail System | 4" Porch Rail System | |||
| Width | Height | Width | Height | |
| Top Rail | 5.250 | 1.250 | 3.250 | 1.250 |
| Subrail | 3.500 | 1.375 | 2.500 | 1.375 |
| Flat Bottom Rail | 5.250 | 1.375 | 3.250 | 1.375 |
| Sloped Bottom Rail | 5.250 | 1.375 | 3.250 | 1.375 |
| Skirt | 2.500 | 3.000 | 2.500 | 3.000 |
PRIMING OPTION (recommended): Premium acrylic primer in flat white available as an option, which allows for immediate installation. Our primer is applied in a light and proper manner. We do not apply our primer too heavy; we apply it correctly. It is normal to see wood grain through the primer after application. If you would like a thicker application, this can be achieved by using additional light coats of your paint. Expect some blemishes in the primer from shipping. This is normal and will not affect the finished result when painted after installation.
SHIPPING COST is displayed in shopping cart. Enter Quantity and click “ADD TO CART”.
CURVED PORCH RAIL is available. Read This Article and email your measurements to us for an estimate.
Click Here for Warranty Information
Proudly Made in the USA.
For Pros

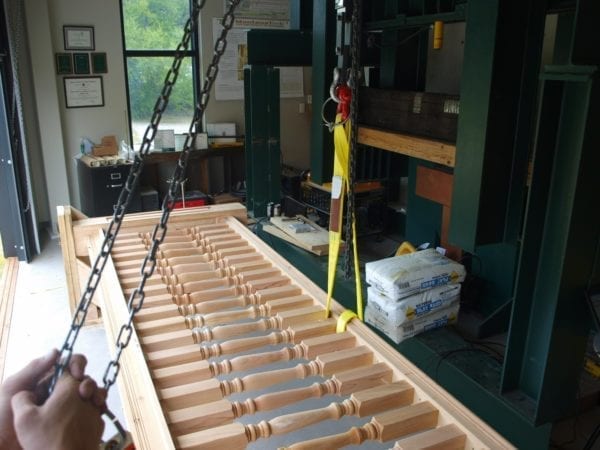

Download Product Drawings:- Wood-Balustrade-Structural-Testing-PDF
- Written 3 Part Specification, Wood Balustrade (.doc)
- 6-Inch-Four-Piece-Rail-Drawing-PDF
- Wood-Balustrade-Install-Instructions-PDF
- Rail-Installation-Kit-Assembly-PDF
- Rail-Installation-Bracket-PDF
