Specifications

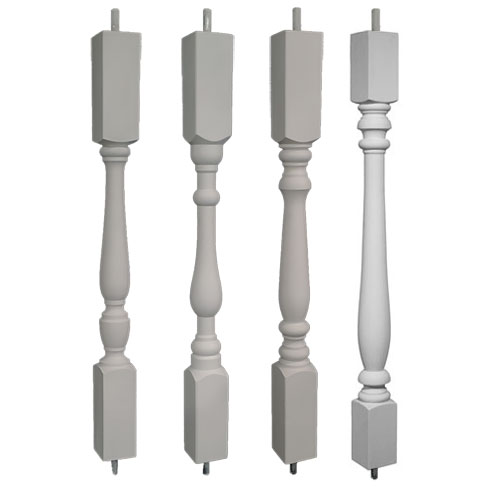

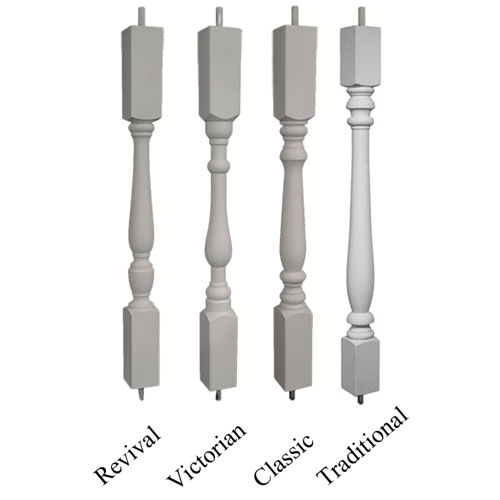

Also called Urethane Balusters. Actual Width: 2 1/2″. Specify length. Recommended On Center spacing is 5 1/2″. Urethane balusters are reinforced with an internal PVC pipe for strength and rigidity. Cut our Poly spindles using normal woodworking techniques. Use with 3 5/8″ Poly Rail System OR the 4 1/2″ Poly Rail System.
What height of urethane baluster do I need?
Using our 3 5/8″ Top and Bottom Rails with a 2″ to 4″ toe space, the following rail heights will result:
20″ Spindle: 28 1/8″ – 30 1/8″
24″ Spindle: 32 1/8″ – 34 1/8″
28″ Spindle: 36 1/8″ – 38 1/8″ (commonly used to meet residential codes)
30″ Spindle: 38 1/8″ – 40 1/8″
32″ Spindle: 40 1/8″ – 42 1/8″ (commonly used to meet commercial codes)
34″ Spindle: 42 1/8″ – 44 1/8″ (commonly used on stair rails. Has the same turning length as the 28″ Spindle)
36″ Spindle: 44 1/8″ – 48 1/8″
How many balusters do I need?
Take the length of your rail (in inches) and divide by 5 1/2″
Example: 10′ of rail, which is 120″. Take 120 divided by 5.5 = 22 needed.
The height of the turned portion on this baluster varies according to total height. Only the 28″ and 34″ baluster have the same turning length. So if you’re using a longer baluster for stairs, for example, only the 28″ and 34″ should be used together.
16″ Baluster: 11 1/4″ turning
20″ Baluster: 14 3/8″ turning
24″ Baluster: 15 5/8″ turning
28″ Baluster: 20″ turning
30″ Baluster: 17 1/8″ turning
32″ Baluster: 21 3/4″ turning
34″ Baluster: 20″ turning
36″ Baluster: 24″ turning
For CURRENT LEAD TIME and shipping transit time, click here.
QUANTITY DISCOUNTS are automatically applied in your shopping cart, starting at 100 pieces.
SHIPPING COST is displayed in shopping cart. Enter Quantity and click “ADD TO CART”.
Click Here for Warranty Information
Proudly Made in the USA.
For Pros
Download Product Drawings:- Poly Balustrade Installation Instructions (PDF)
- WS Polyurethane Structural Guard Rail Test Report
- Written 3 Part Specification, Poly Balustrade (.doc)
- 2.5 Inch Urethane Baluster Drawing (PDF)
